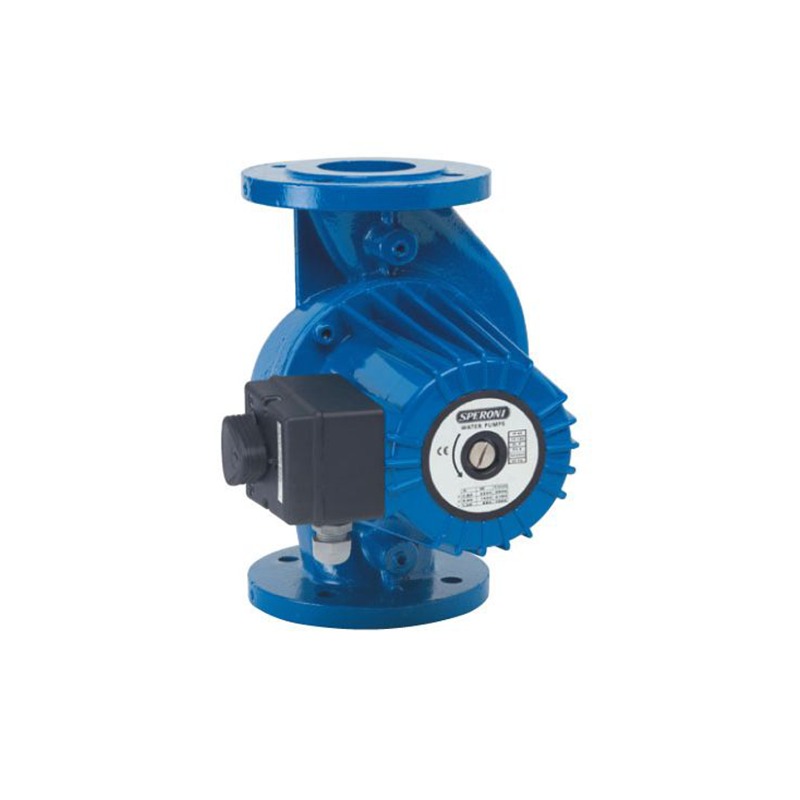

SCRFE inline circulator pump
Speroni SCRFE pump
The SCRFE inline pump, with its flanged design and electromagnetic flow control, is designed for specialized applications in industrial circulator systems, featuring high energy efficiency.
Speroni SCRF series circulator pumps, from the Italian brand Speroni, are designed for water circulation in heating, cooling, and HVAC systems on industrial and building scales. With high power, a robust body, and speed adjustment capabilities, these pumps are considered an ideal option for large projects and complex systems.
Technical Specifications of Speroni SCRFE Series Pumps
Pump type: Wet rotor centrifugal circulator
Body material: Cast iron
Impeller and shaft material: Stainless steel
Motor power: Up to 2.2 kW
Number of speeds: 3 adjustable speeds
Supply voltage: Single-phase 230V
Max flow rate: Up to 32 m³/h
Max head: Up to 12.2 m
Liquid temperature: From -10 to 120°C (up to 140°C for short durations)
Max working pressure: 10 bar
Motor protection class: IP43
Insulation class: F
Key Features of SCRFE Series Pumps
Speed adjustment: Three-speed adjustment capability to match various system requirements
Quiet operation: Wet rotor design reduces noise and increases pump service life
Robust construction: Cast iron body and stainless steel components for increased durability and corrosion resistance
Easy installation: Standard connections and suitable dimensions for installation in various spaces
Applications of SCRFE Series Pumps
Central heating systems in large buildings
Water circulation in industrial HVAC systems
Use in industrial boilers and chillers
Heating and cooling systems in building projects
